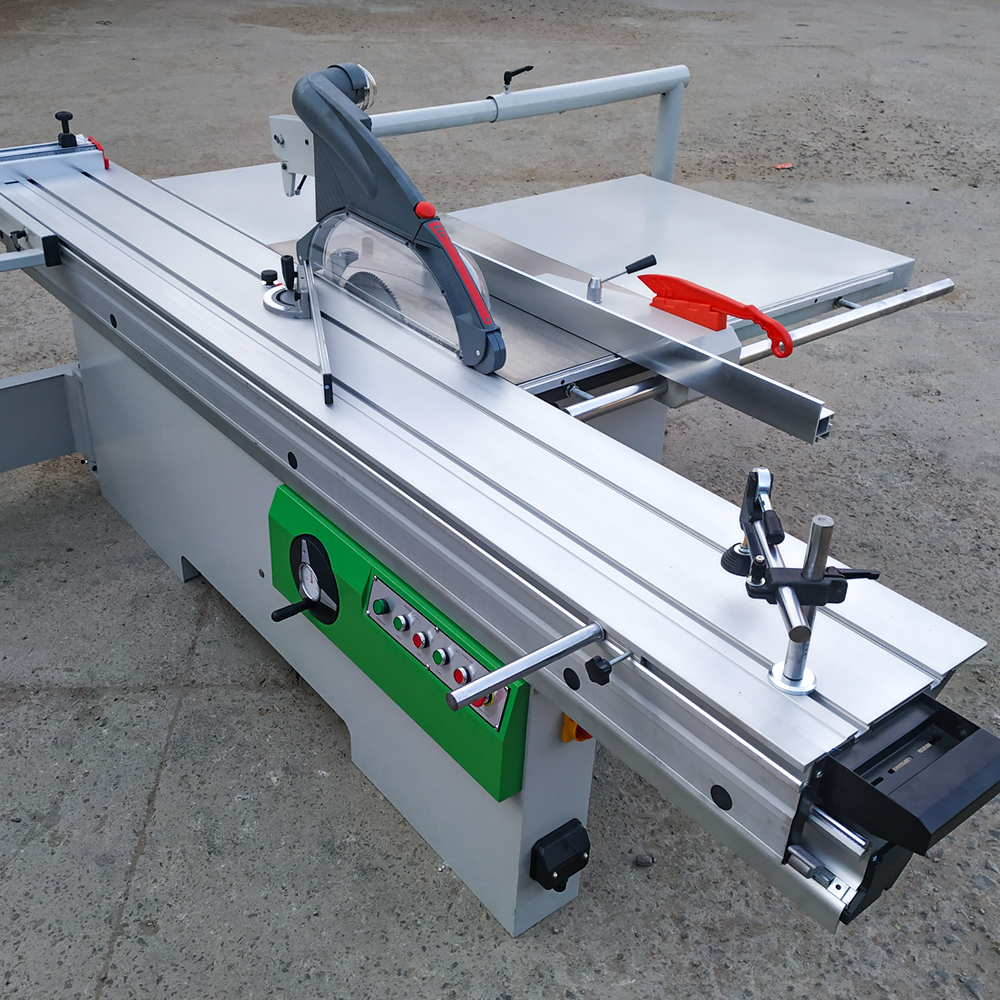

MJ6232TD Europ panel saw
Europe technology, Sliding table length 3200mm, 45 and 90 degree, Overload protect
Double layers, Control panel power is 24v, Big ruler with inch and mm. Open door, cutting power.
Model Functions
| Function | MJ6232TD | MJ6232TE | MJ6232TF | MJ6232TG | MJ6232TS |
| 45 degree | √ | √ | √ | √ | √ |
| 3200mm | √ | √ | √ | √ | √ |
| Main saw angle titl digtal display | √ | √ | √ | ||
| Main saw angle titl | Manual | Manual | Manual | Manual | Auto |
| Main saw up and down | Manual | Auto | Manual | Auto | Auto |
Technical Parameter
| Max cutting length | 2800 / 3000 / 3200 / 3600 / 3800mm | |||
| Max cutting width | 1250mm | Sliding table width | 380mm | |
| Main saw blade diameter | 300mm | Tilting saw blade | 45 degree | |
| Scoring saw blade diameter | 120mm | Height of cut at 45° | 60mm | |
| Main saw spindle speed | 4500-600rpm | Height of cut at 90° | 90mm | |
| Scoring saw spindle speed | 7000-8000rpm | Main motor | 5.5kw | |
| Main spindle diameter | 30mm | Scoring motor | 1.1kw | |
| Scoring spindel diameter | 20mm | Gross weight | 800-1200kg | |
| Overall diameter | 2850 / 3050 / 3250 / 3650 / 3850 x 3150 x 900mm | |||

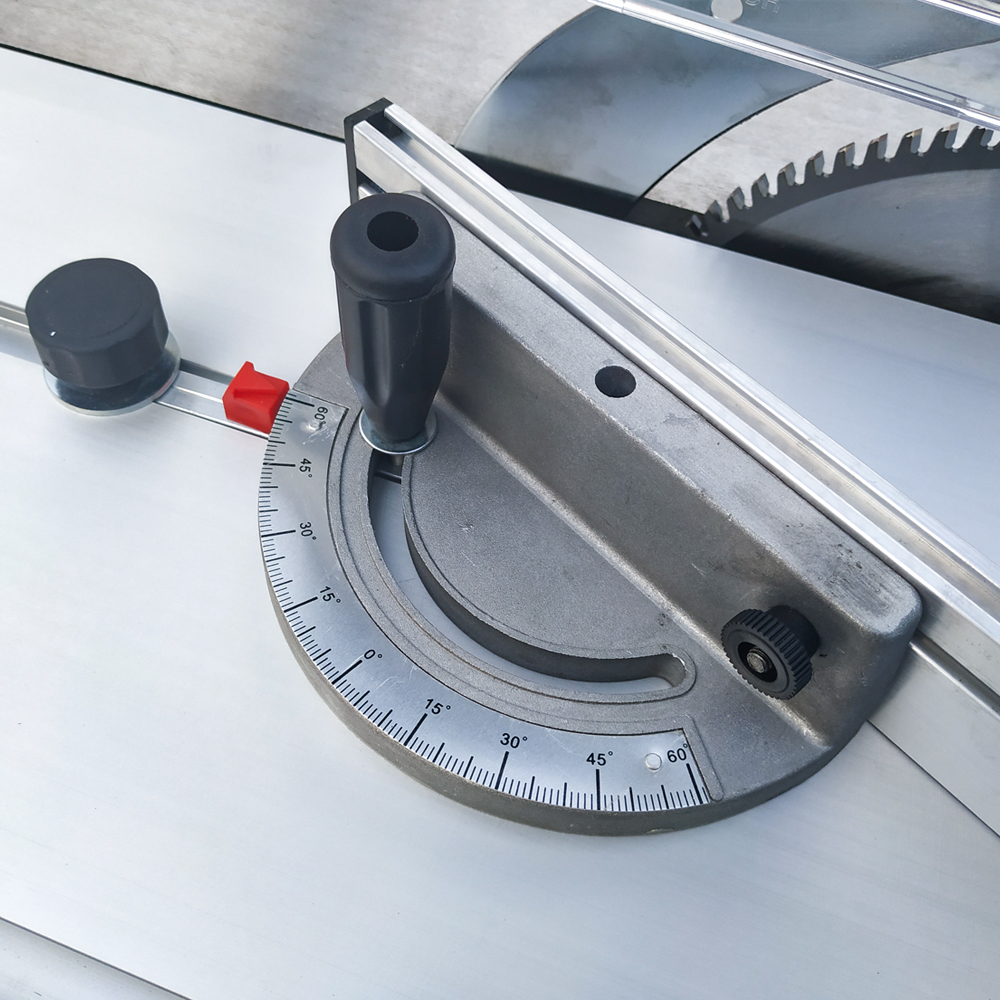

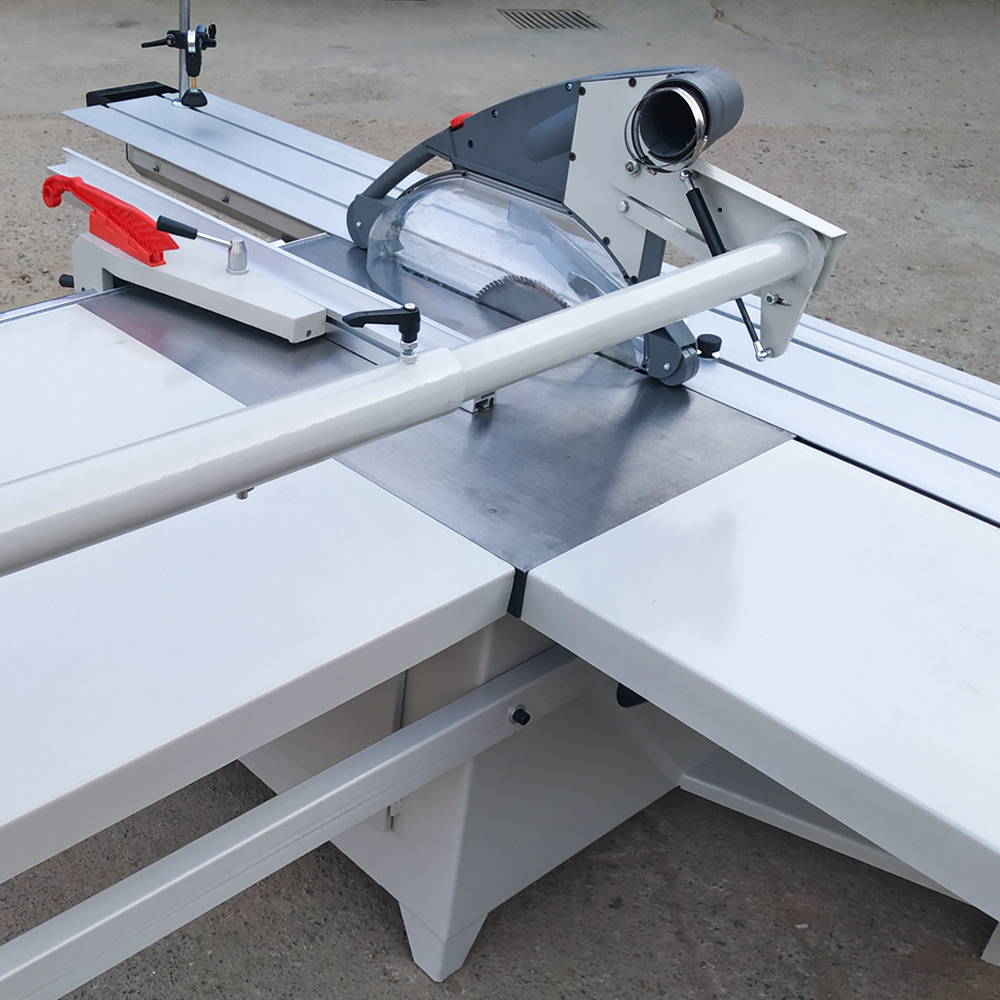

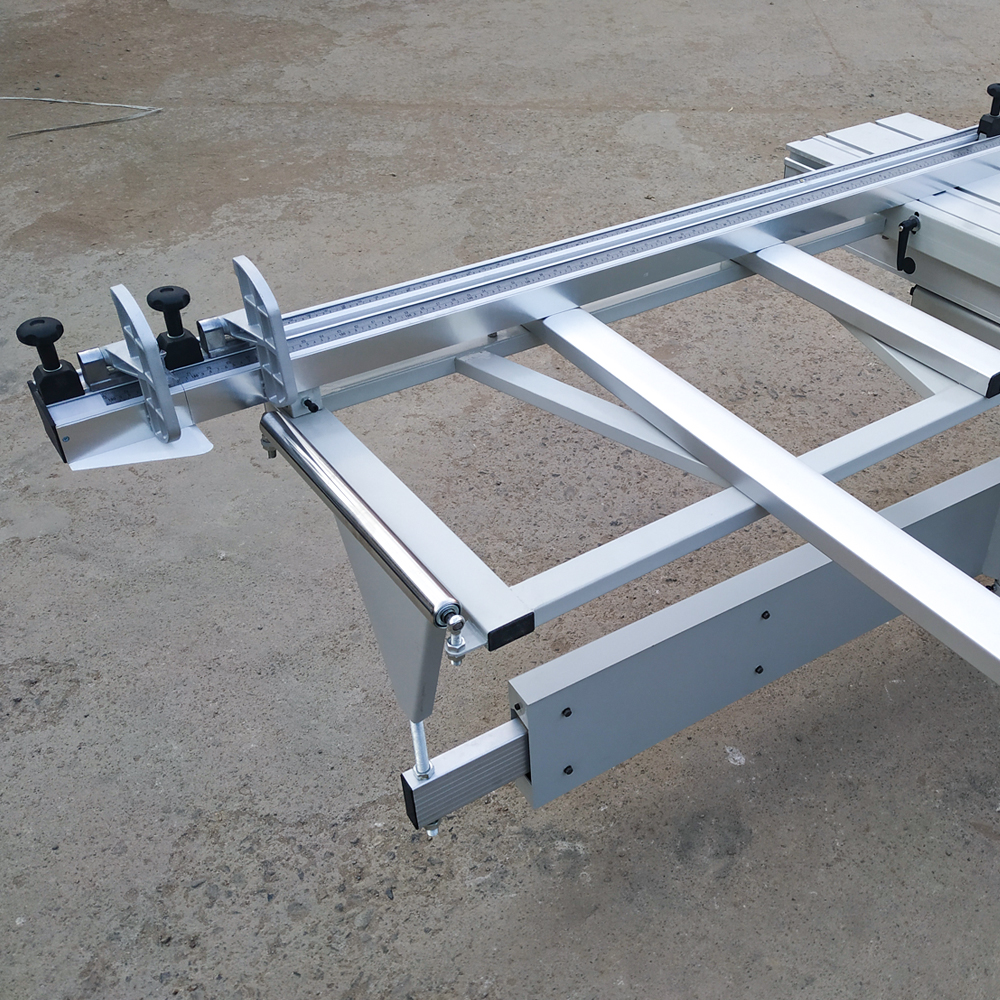

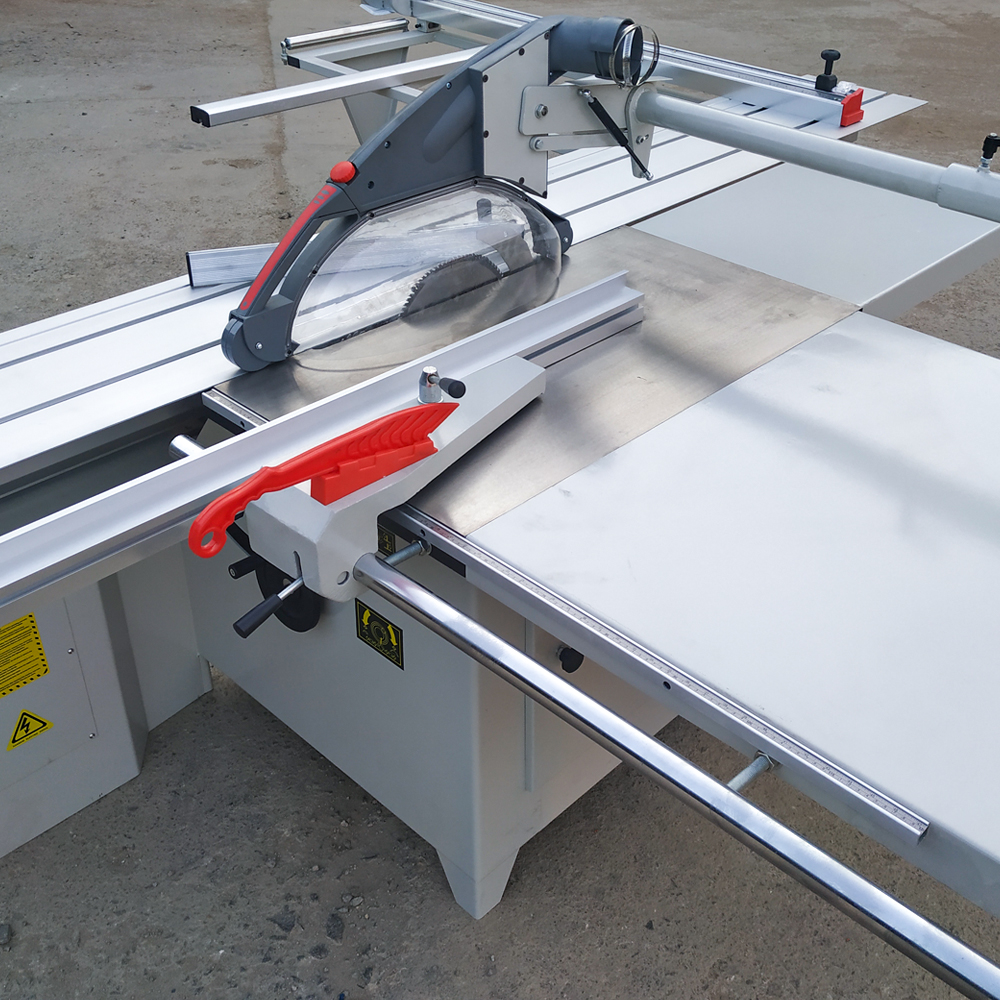

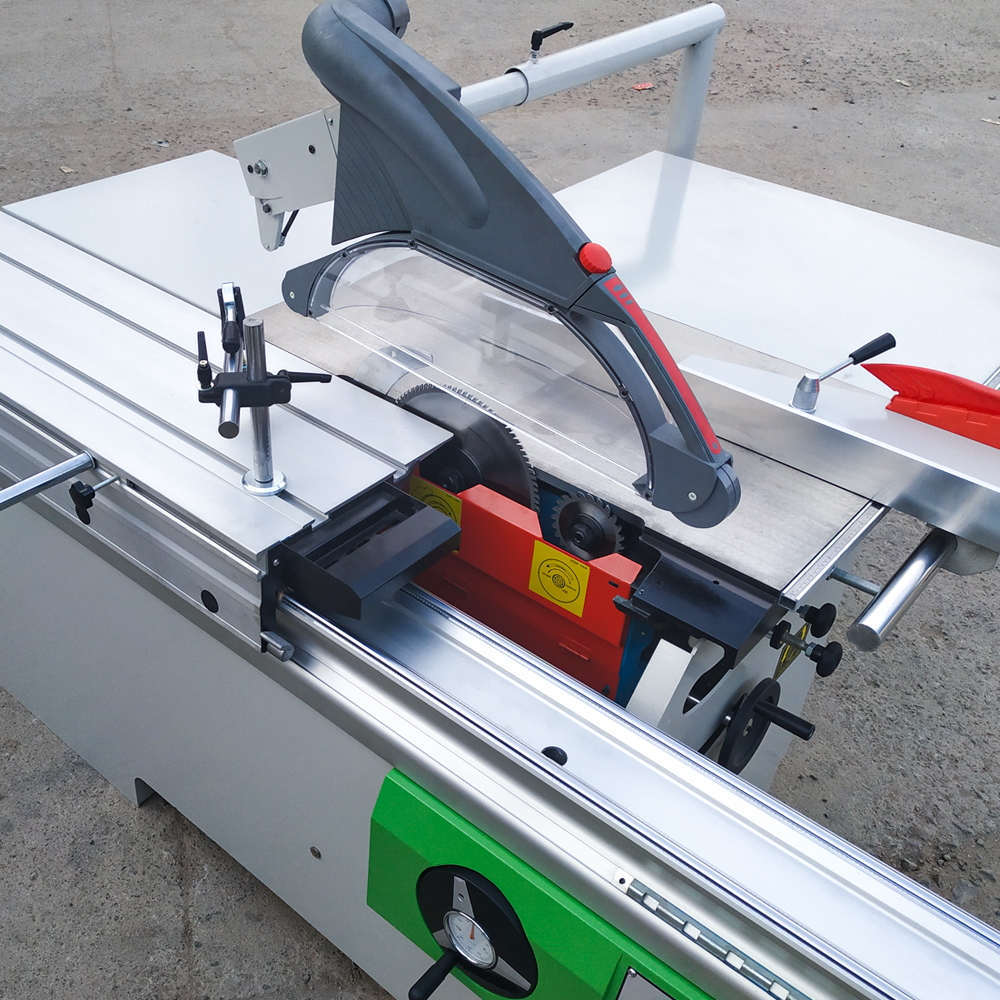

Parts show

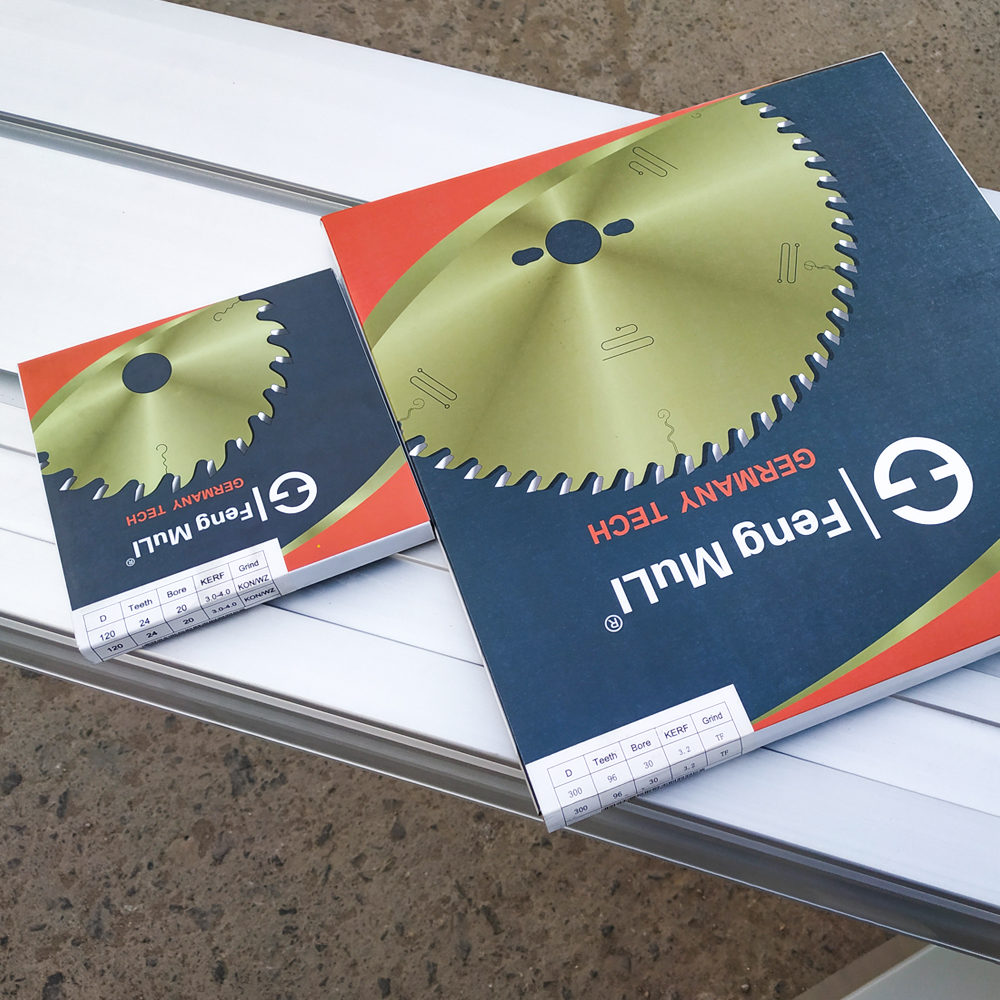

Packaging and shipping
