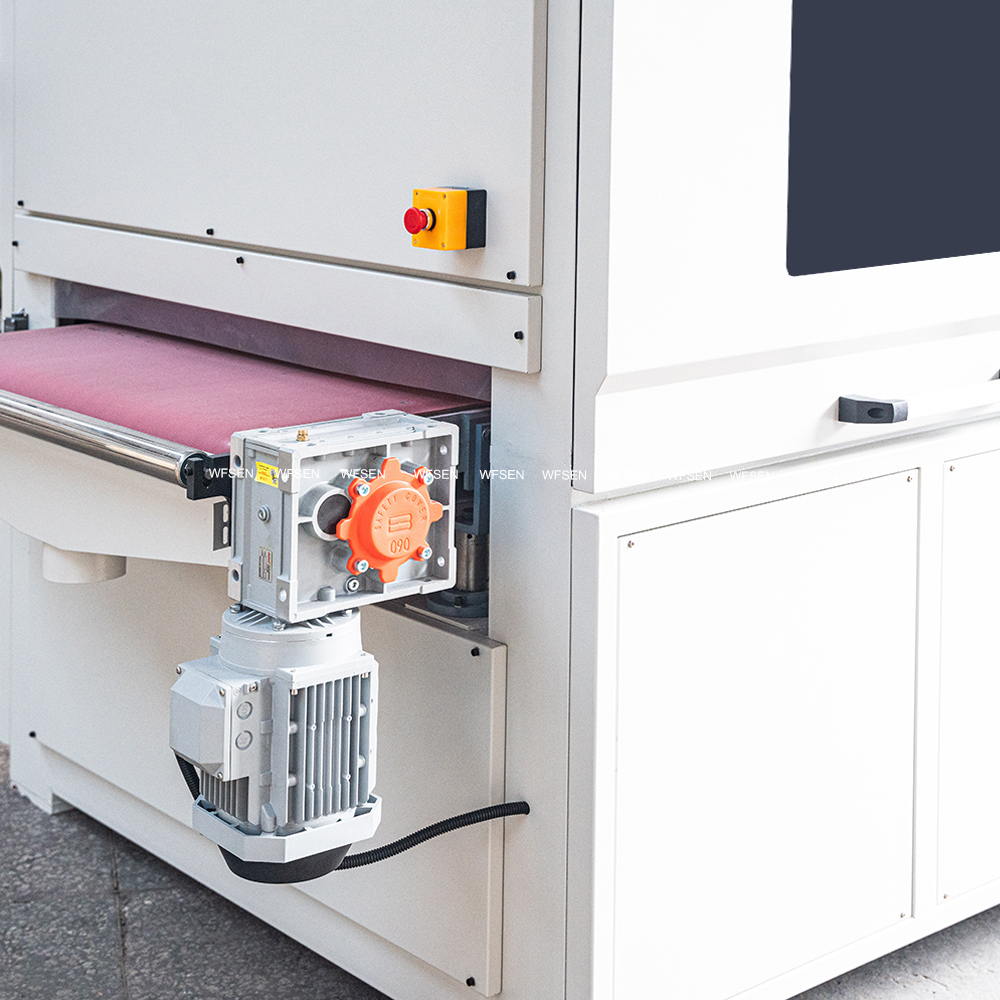

W1100 sanding machine for metal
After any cutting, drilling, laser cutting, mill, and other machining processes, burrs, hot slag,
and scum will be produced at the edge of the workpiece, remove burrs, suit for a variety of metal plates.
——— Technology parameter
Model | W1100 | Brush roller motor | 2.2kw*4 |
Working width | 1100mm | Brush roller lift motor | 0.37kw |
Working thickness | 0.2-70mm | Table lift motor | 0.37kw |
Min.Working piece size | 50*50mm | Feeding motor | 3kw |
Polishing angel | R0.1-0.5mm | Magnetic iron adsorption | 820-920mm |
Feeding speed | 0.5-6m/min | Working air | 0.6Mpa |
Brush roller speed | 8-20r/s | Overall size | 2400*1800*2200mm |
Brush roller size | Ø300*L400mm | Weight | 2000kg |
—— Machine parts
——— Suit for metal
——— Workshop show
Metal sanding machine, W1100 or WR1100, better choose 20 or 40 feet container for safety.
