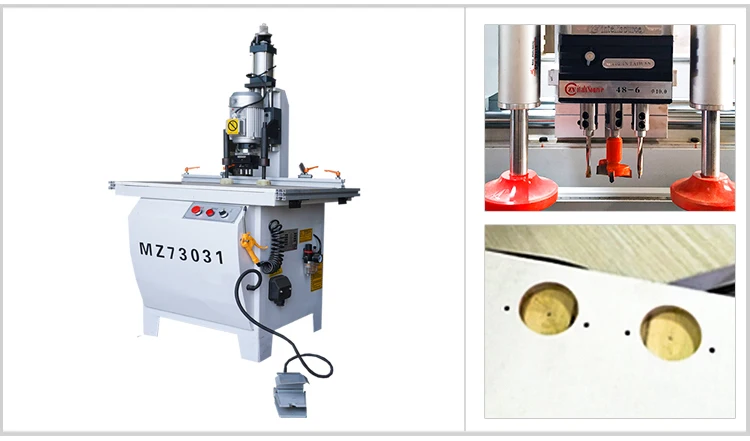

MZ73031 Hinge drilling machine with single head
——— Technical Parameter
| Model | MZ73031/2/3/4 | Number of heads | 1/2/3/4 |
| Max.Working diameter | 50mm | Number of spindles | 3 axis*1/2/3/4 heads |
| Max.Working depth | 50mm | Spindle speed | 2900r/min |
| Vertical spindle heads | 250-1200mm | Overall power | 1.5kw*1/2/3/4 |
| Working air | 0.6Mpa | Weight | 280/350/400/500kgs |
| Overall size | 800/1600/2000/2400*1100*1600mm | ||
——— Functions show

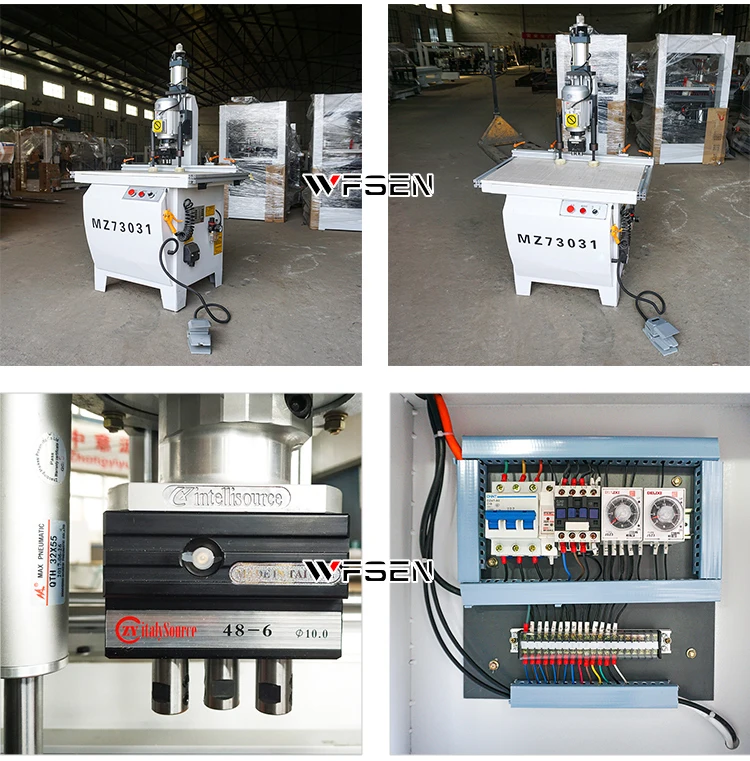

——— Machine show
——— Workshop show
——— Packing shipping
The machine body is fixed on a wooden pallet, then packed in a wooden case, or as requested.
Before delivery, we will install and test it well. Then cover with plastic film to prevent moisture.
