MJ300T/400S Combination table saw
5 Functions: Saw + Planer + Thincknesser + Shaper + Mortiser
——— Technical Parameter
| Model | MJ300T /400S | ||
| 5 Functions | Saw ,Shaper, Mortiser, Planer, Thicknesser | ||
| Saw 90°/45° | |||
| Blade diameter | 300*30mm | Cutting width parallel fence | 500/730mm |
| Engraver blade diameter | 90*22mm | Sliding table size | 1250/1800mm |
| Working tables | 220*1000mm/326*1112mm | Shaft rotationn speed engraver | 4500/7000r.p.m |
| Planer | |||
| Cutter block diameter | 70mm | Max table adjustment | 4mm |
| Working tables |
300*1500mm/400*1800mm |
Shaft rotation speed |
5700r.p.m |
|
Thicknesser |
|||
|
Feed speed |
7m/min | Working height | 4-220(mm) |
|
Working tables |
300*660mm/400*760mm | Max.cutting height | 4mm |
|
Shaper |
|||
|
Standard shaft diameter |
30/35/50mm | Shaft vertical stroke | 115mm |
|
Working tables |
220*1000mm/290*1112mm | Max.tool diameter | 180mm |
|

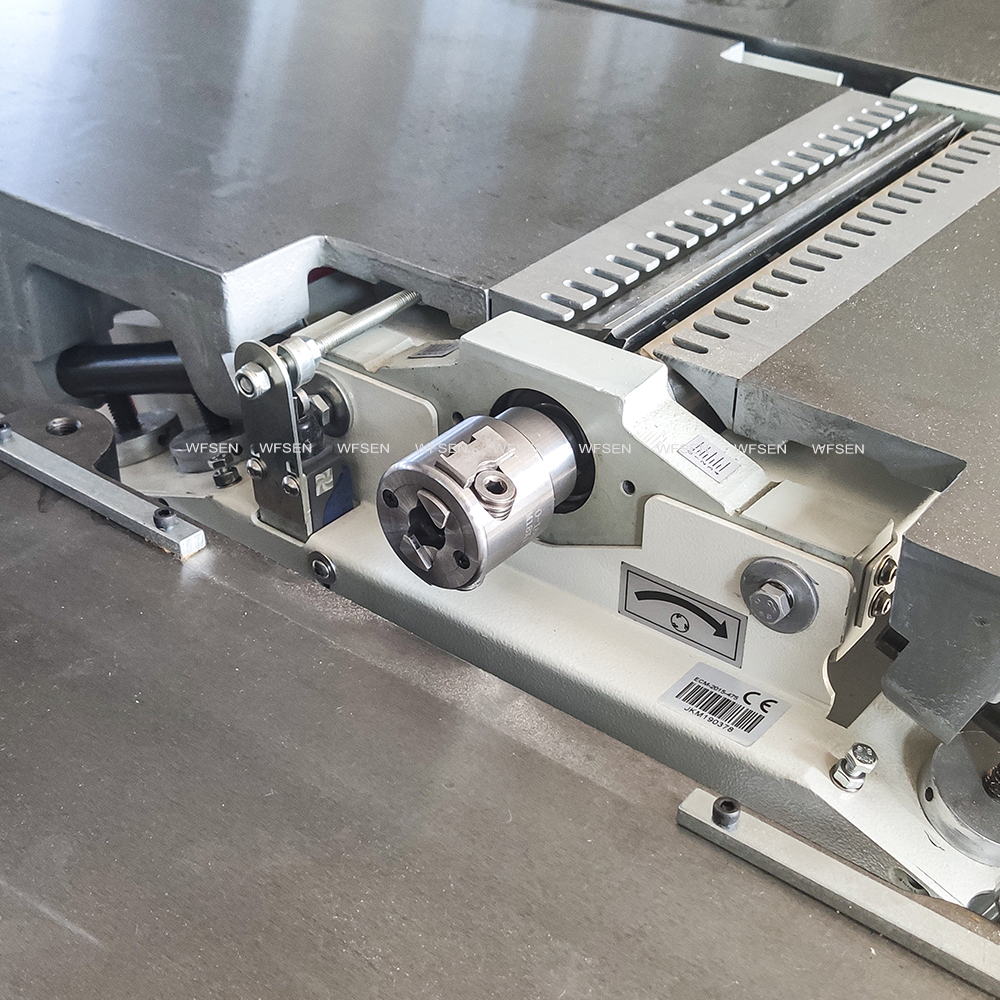

Motiser |
|||
|
Longitu dinal stroke |
205mm | Trasveral stroke | 95mm |
|
Vertical stroke |
90mm | Churck | 0-16mm |
|
Total |
|||
|
Power |
3*2.2kw/3*3kw |
Weight | 700kgs/800kgs |
|
Overall size |
1700*1200*1100mm/2000*1300*1100mm |
||
——— Functions show
