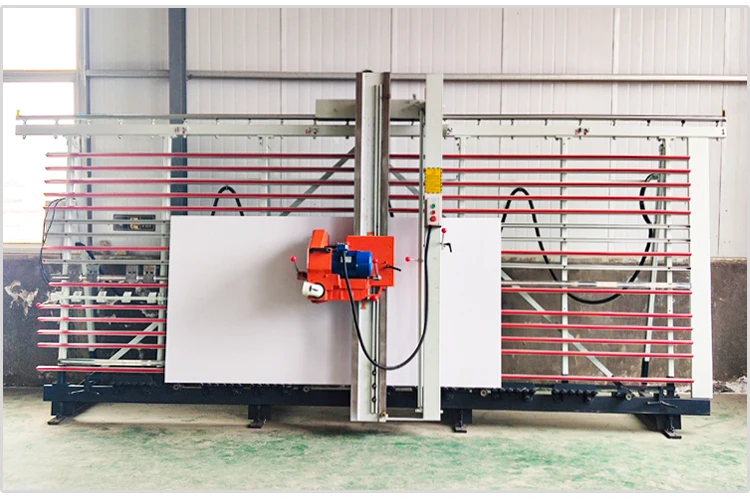

MJ4116 vertical panel saw

cutting precision ≤ 1.5mm, digital display, cutting and grooving.



                                 MJ4116 vertical panel saw with ≤ 1.5mm

European technical structure.

High precision ≤ 1.5mm (2000mm)

Special eccentric bearing control groove depth, adjusted arbitrarily 0-8 mm.

Cutting and slotting for Aluminum plate/PVC/MDF/Multilayer/Solid Wood.

The head can be horizontal and vertical cutting or grooving, accurate location, friendly operations.

With directional device and locking device.

Choose digital display device.



          Technical Parameter



 Model  MJ4116         Max. cutting thickness  60mm
 Cutting size  4100*1600mm   Motor speed  2900r/min
 Grooving deepth   0-8mm   Main motor  4kw
 Cutting saw blade  Ø250*Ø30*15mm  Overall size  5400*1300*2600mm
 Grooving saw blade  Ø250*Ø30*15mm  Weight  1000-1200kg



Wood MDF Vertical panel saw with cutting grooving
